SPECIFICATIONS
MODELS

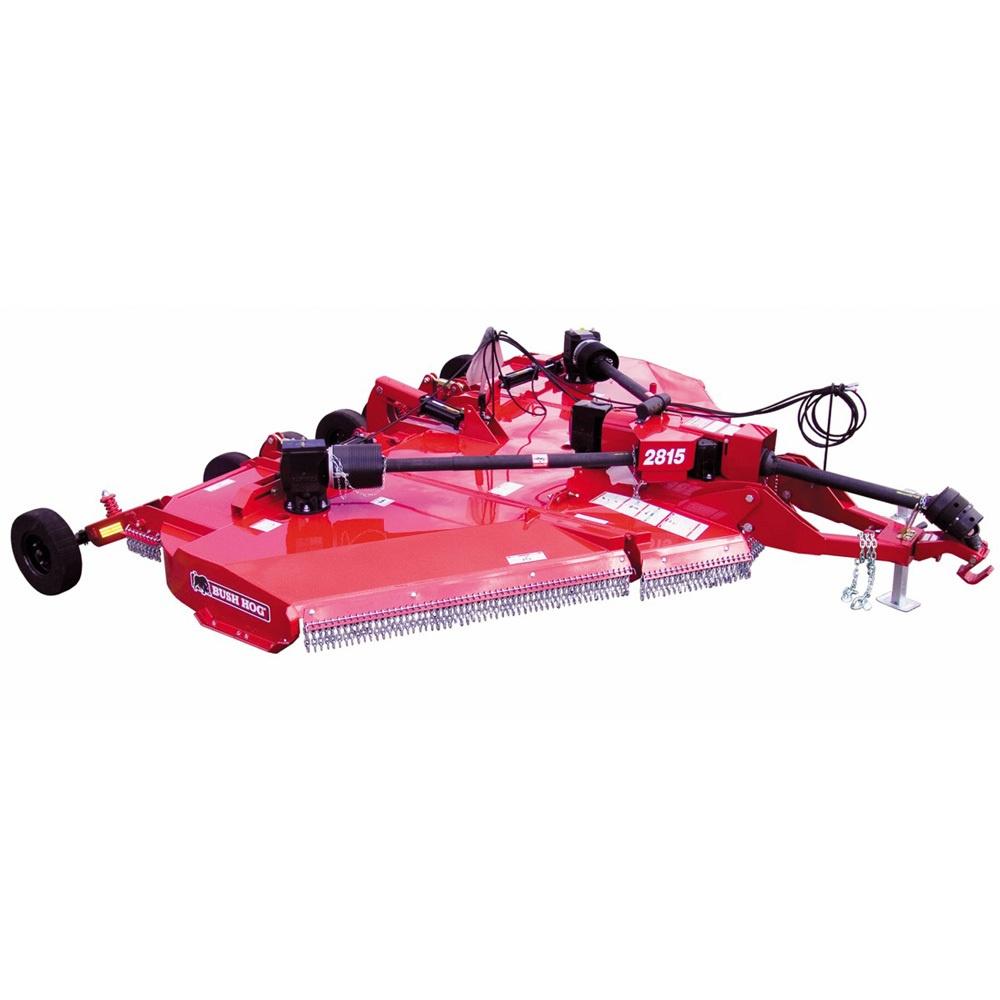

2815
CUTTING WIDTH
15′
CUTTING HEIGHT
2″ – 14″
CUTTING CAPACITY
4″
TRANSPORT WIDTH*
8′ 2″
TRANSPORT HEIGHT**
7′ 3″
TRANSPORT LENGTH***
15′ 3″
APPROXIMATE WEIGHT (LB.)
5,500
APPROXIMATE TONGUE WEIGHT (LB.)
1,900
MINIMUM TRACTOR PTO HP
60
HITCH
“PERMA-LEVEL”
CENTER DECK
11GA OVER 7GA
WING DECKS
7GA
WING CUTTING ANGLES
22° DOWN AND 45° UP
WING LEVEL ADJUSTMENT
TURNBUCKLES
SIDEBANDS
1/4″ X 13 1/2″
TRANSFER GEARBOX (HP)
250
CUTTING GEARBOXES (HP)
225
INPUT DRIVELINE
CATEGORY 6
WING DRIVELINES
CATEGORY 4
BLADE HOLDER
7GA ROUND
BLADES
1/2″ X 4″
BLADE TIP SPEED (FPM)
16,268
AXLE SUSPENSION
SPRINGS @ EACH AXLE
CENTER & WING HYDRAULICS
3 HOSES STANDARD
SAFETY TOW CHAIN
STANDARD
DISTRIBUTION BAFFLES
OPTIONAL
PTO DRIVELINE SUPPORT
OPTIONAL
WARRANTY
10-YEAR GEARBOX LIMITED WARRANTY
1-YEAR MACHINE LIMITED WARRANTY
*Measured from Wing Skid to Wing Skid when Folded
**Measured at Maximum Transport Height
***Measured from hitch tip to rear of 21″ Laminated Tire
