SPECIFICATIONS
MODELS

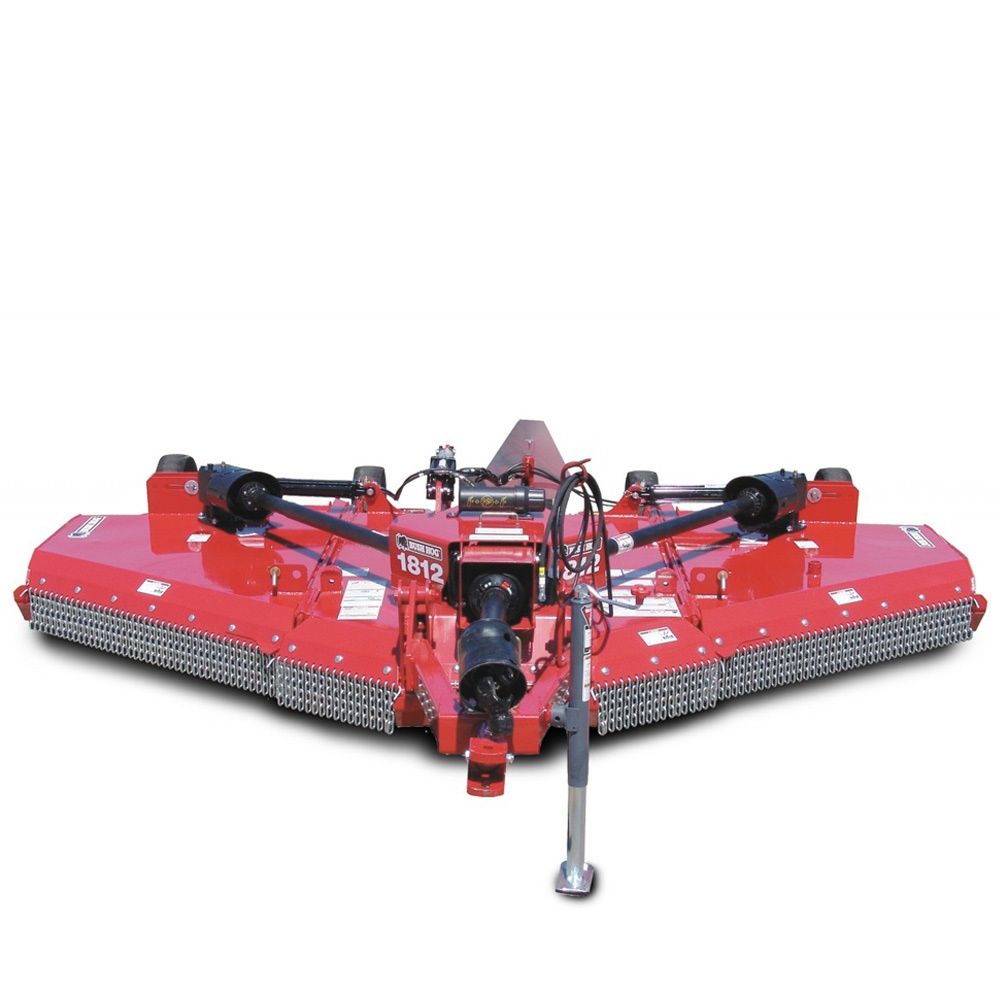

1812
CUTTING WIDTH
12′
CUTTING HEIGHT
2″ – 13″
CUTTING CAPACITY
1 1/2″
TRANSPORT WIDTH*
6′ 8″
TRANSPORT HEIGHT**
5′ 8″
TRANSPORT LENGTH***
13′ 7″
APPROXIMATE WEIGHT (LB.)
3,200
APPROXIMATE TONGUE WEIGHT (LB.)
1,100
MINIMUM TRACTOR PTO HP
50
HITCH
CAST SWIVEL CLEVIS
CENTER DECK
10GA
WING DECKS
10GA
WING CUTTING ANGLES
22° DOWN AND 45° UP
WING LEVEL ADJUSTMENT
TURNBUCKLES
SIDEBANDS
1/4″ X 11 1/2″
TRANSFER GEARBOX (HP)
160
CUTTING GEARBOXES (HP)
65
INPUT DRIVELINE
CATEGORY 4
CUTTING DRIVELINES
CATEGORY 3
BLADE HOLDER
11GA OVAL
BLADES
1/2″ X 3″
BLADE TIP SPEED (FPM)
14,504
AXLE SUSPENSION
RUBBER PADS (CENTER)
CENTER & WING HYDRAULICS
1 HOSE STANDARD
SAFETY TOW CHAIN
STANDARD
DISTRIBUTION BAFFLES
NA
PTO DRIVELINE SUPPORT
NA
WARRANTY
10-YEAR GEARBOX LIMITED WARRANTY
1-YEAR MACHINE LIMITED WARRANTY
*Measured from Wing Skid to Wing Skid when Folded
**Measured at Maximum Transport Height
***Measured from hitch tip to rear of 21″ Laminated Tire
